UL 3239 10kv/20kv/30kv high flexible high voltage silicone wire cable

FOB Reference Price:Get Latest Price
$0.10 - $10.00 / Meter | 1000 Meter/Meters 10kv high voltage silicone cable (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
chinawye
Model Number:
UL323910KV
Type:
Insulated
Application:
electrical household appliance, lamps
Conductor Material:
bare copper tin-coated copper, bare copper tin-coated copper
Conductor Type:
Stranded, Stranded
Insulation Material:
siicone rubber
Color:
Available in colors
Range Voltage:
3kv-50kv
Rated Temperature:
-60-200C
Jacket:
silicone rubber
Manufacturer:
china
Sample:
free sample of high voltage silicone cable
Name:
10kv high voltage silicone cable
Main market:
Middle East,Southeast Asia
Supply Ability
Supply Ability:
100000 Meter/Meters per Week 10kv high voltage silicone cable
Packaging & Delivery
Packaging Details
package for 10kv high voltage silicone cable
1.100 or 200 Meters/Roll/Spool
2.500 or 1000 Meters/Spool
3.rolls or coils or spools
4.as customer's requirement
Port
shanghai
Lead Time :
Shipped in 7 days after payment
Silicon Wire Info

Composition:
1.Conductor:Tinned copper or bare copper
2.Insulator:Silicone rubber

Description:
1. Nominal Voltage: 3KV-50KV
2. Temperature Range: -60°C to +200°C
3. O.D.Allowance: ±0.20mm
4.Color: Black-Brown-Red-Orange-Yellow-Green-Blue-Purple-Gray-White-Transparent-Yellow/green,etc
5.Application:10kv high voltage silicone cable applied to insustry,electrical household appliances,

lamps,electronic equipment,etc

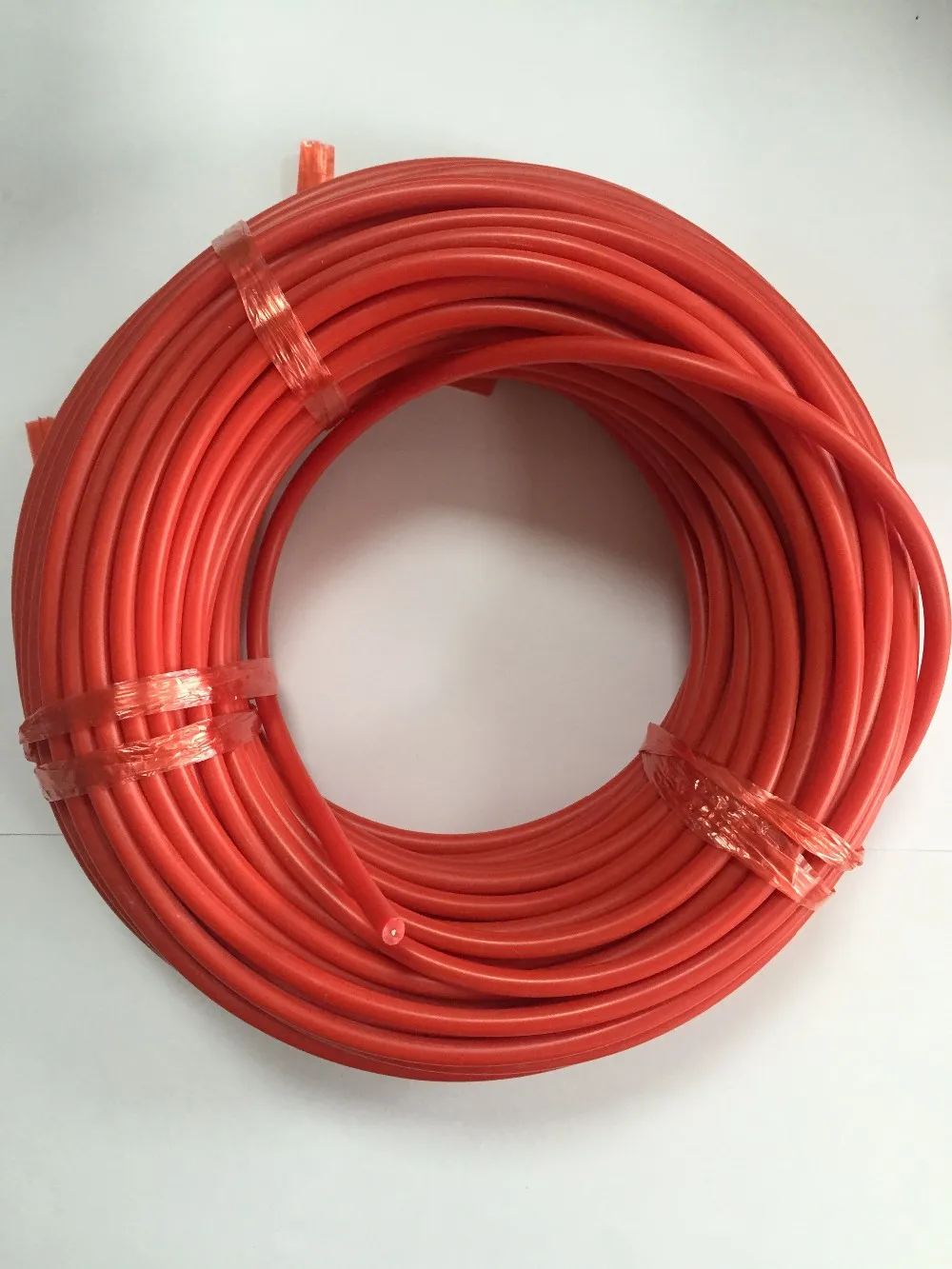

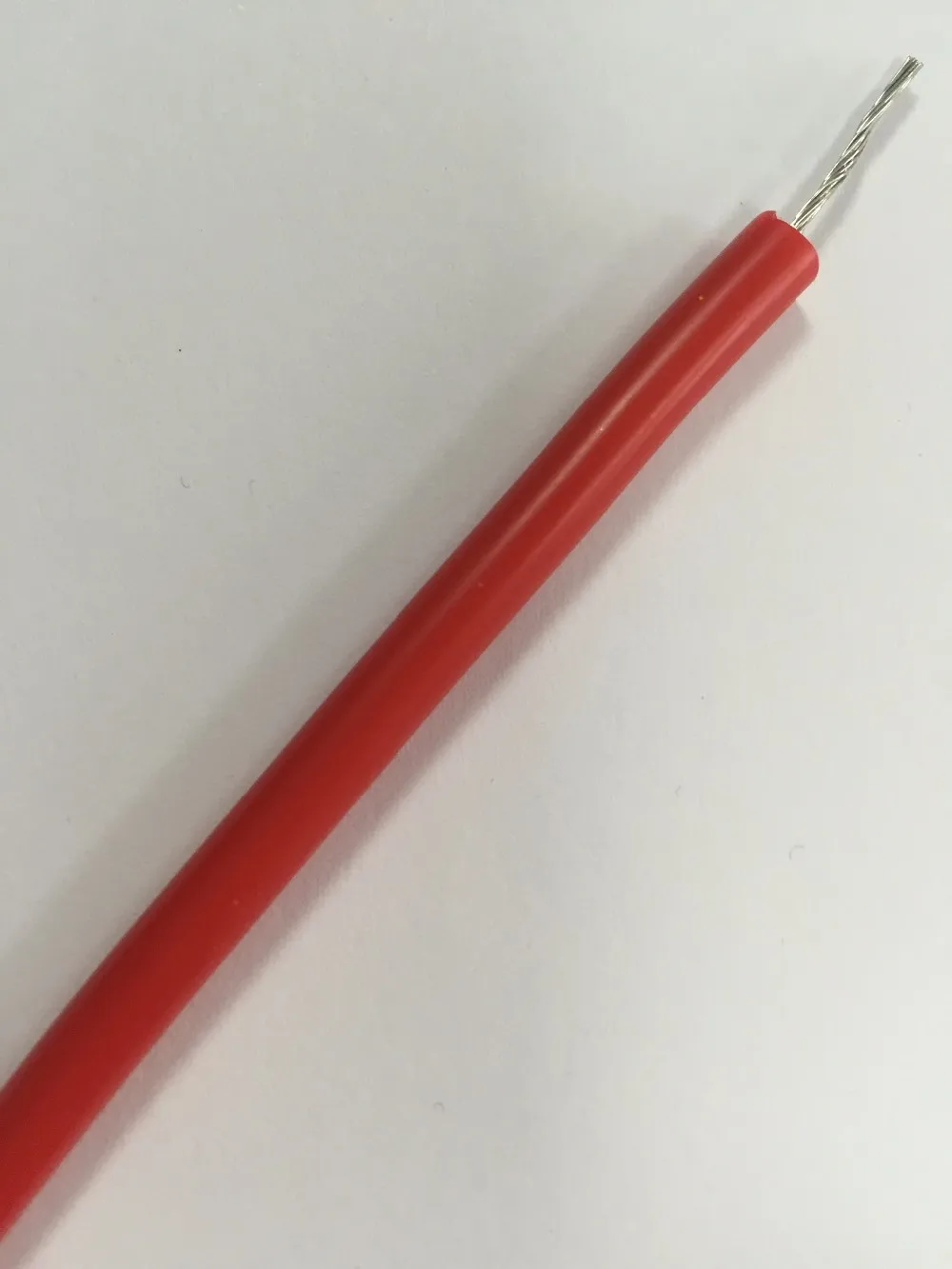

Silicon Wire Image

Size:14AWG 10KVDC

Insulation:silicone rubber

Wire diameter:4.3mm

Silicon Wire Feature


Low resistance,high conductivity

Use high purity oxygen-free copper of 10kv high voltage silicone cable,
Strong current load capacity,
Low energy consumption,
The lower resistance, the more energy saving.


Flame retardant material

Use high quality silicone rubber of 10kv high voltage silicone cable,
-60-200C high/low temperature resistance,
Enhance the tensile strength and flexibility,
Not easy to break the skin,flame resistance.


Uniformity rubber Insulation thickness

Use advanced thickness measurement equipment,
Ensure low eccentricity of 10kv high voltage silicone cable,
Effectively prevent the current breakdown of ignition,
Ensure the safety of electricity.


Meet the quality inspection

Use accurated testing equipment,
Combine with the quality standards,
Layered inspection,
Ensure quality of 10kv high voltage silicone cable,
Safety is happiness.

Product Parameter

Spec

Conductor
Insulation Thinkness
10KV
20KV
30KV
Structure
Diameter
Nominal
Diameter
Nominal
Diameter
Nominal
Diameter
AWG
mm
mm
mm
mm
mm
mm
mm
mm
26
7/0.16
0.48
1.00
2.50
1.30
3.10
1.70
3.90
24
7/0.20
0.60
1.00
2.60
1.30
3.20
1.70
4.00
22
7/0.26
0.78
1.00
2.80
1.30
3.40
1.70
4.20
20
7/0.32
0.96
1.00
3.00
1.30
3.60
1.70
4.40
18
16/0.26
1.20
1.00
3.20
1.30
3.80
1.70
4.60
16
26/0.26
1.58
1.00
3.60
1.30
4.20
1.70
5.00
14
37/0.26
1.88
1.20
4.30
1.50
4.90
2.00
5.90
Production Line

Main products:
1. High temperature silicone wire and cable.
2. High temperature silicone fiberglass wire and cable.
3. High temperature FEP,PFA,PTFE wire and cable.
4. High temperature Fiberglass sleeves.


Our package:

Plastics Spool
Package  Size
30 (L) * 30 (W) * 24 (H)/ cm
Normal Package
Carton Size
34 (L) * 34(W) * 25 (H)/cm
Fumigaion-free Wooden Pallet Size
110 (L) * 110 (W) * 11 (H)/cm
Weight/Volume
Based on size and weight of wire
Packaging Details
We choose the best package for different sizes of wire.All the package are safe for exporting.
Company Profile

Wuxi Chinawye International Company
is a modern enterprise,located in Qingyang Town,Jiangyin City,near Shanghai.We're specilized in designing and manufacturing 10kv high voltage silicone cable for many years.

Our services:
1)We provide OEM service.
2)We provide buying service to help customers find what they need.
3)If there are any other special request for making better cooperation, we will do our best.

Our advantage:
1)Our staff is well-trained and educated in this industry.We will save your money in the end because of our efficiency and professional.
2)We have been in this field for many years and thanks to our R&D department,we always catches the latest trend in the market.
3)With required certified and experienced after sales service,there was no any clearance issue in the shipments we have arranged.

Our location:
By air: 2.5h from Guangzhou to Wuxi
By car:2h from Shanghai to Wuxi

Hot Silicon Wire

Carbon fiber silicone heating wire

Size:12k 33ohm/m
OD:3.0mm                                         BUY NOW

UL3122 fiber glass braid silicone wire

Size:18AWG 300V
OD:2.4mm                                            BUY NOW

UL3135 flexible silicone wire

Size:14AWG 400/0.08mm 600V

OD:3.5mm                                      BUY NOW

UL1330 FEP wire

Size:18AWG 600V
OD:2.2mm                                             BUY NOW

FAQ

Q1:How to judge copper and CCA(Copper Clad Aluminum)?
1)Observe color of cross section
Cut cross section of wire ,aluminum color is white,pure copper is yellow
2)Burning
Copper:after burning,forms a ball-shaped object
Aluminum:after burning, conductor droop straight and color is white, it will be broken after touching
3)Scratch with a tool
After scratching,copper or tinned copper wire appears yellow,
copper clad aluminum appears white color.


Q2: Why this wire is pre tinned?? like a silver color??
There are two kinds of copper wire: bare and tinned. The primary difference between the two is corrosion resistance. When someone wants tinned wire, they are likely concerned with corrosion forming on the wires. Corrosion is not a good conductor.

Q3:What's advantage of silicone insulation?
The nice thing about the silicone is it is very flexible, you can bend it easily every which way and secure it however you like with zip ties or whatever without hassle. Regular stranded wire is a pain to try to form the way you want in RC applications. I think the silicone is well worth it for ease of use in RC.

Q4:Why flexible silicone wire is so popular on Ebay?
This was used to drive motors on a remote robot. The wire is very easy to work with. It takes solder easily, is very flexible, and has a thick insulator. It's a little more than I am used to spending on wire, but the product is much nicer than standard Teflon or plastic coated wire.

Q5:How can l get a sample of silicone wire to confirm the quality?
1)Free sample
Regular silicone wire you can get free samples, just pay for the freight.
And we can provide you with three Express(TNT/DHL/FEDEX) the lowest discount.
Also you can also provide us with your Express account.
2)Customized sample
Please give me your request,but you need pay for the sample fee and freight.
And we will return back the sample fees once the order is confirmed.

Q6:Which message you can leave to get a quote quickly?
Leave us wire gauge,voltage,outer diameter,insulation and qty,
you will get an accurate quote asap.
